[Paper Review] MicroNN by Apple: A Disk-resident Vector Database for On-device AI — Adaptable for custom-RAG?

Overview

Apple's MicroNN is a lightweight, on-device vector search engine optimized for constrained environments such as smartphones and edge devices.



Unlike most ANN systems designed for high-memory server setups, MicroNN is designed to operate with as little as 10MB of RAM and fully disk-resident data structures, while still achieving <7ms latency and 90% recall on million-scale vector benchmarks.



This post summarizes the key design lessons, experimental findings, and strategic implications for developers and PMs considering vector search on low-resource environments.

---

1. Technical Architecture

💾 Disk-resident IVF Index

• Uses Inverted File Index (IVF) to partition vectors into clusters.
• Stores vector partitions on SSD and only loads the top-n relevant partitions into memory at query time.
• Enables scalable ANN search without relying on high-memory servers.

🔄 Delta Store for Real-time Updates

• Newly inserted vectors go into a delta-store, not the main index.
• All queries include both IVF and delta-store results.
• When delta-store grows too large, vectors are incrementally merged into IVF partitions.
• This avoids costly full re-indexing and reduces SSD write overhead.

⚙️ Hybrid Query Execution

• Supports combining ANN search with structured attribute filters (e.g., location = Seattle).
• Includes an optimizer to choose between pre-filtering (accurate but slower) and post-filtering (faster but lossy) based on predicate selectivity.

⚡ Mini-batch K-Means Clustering

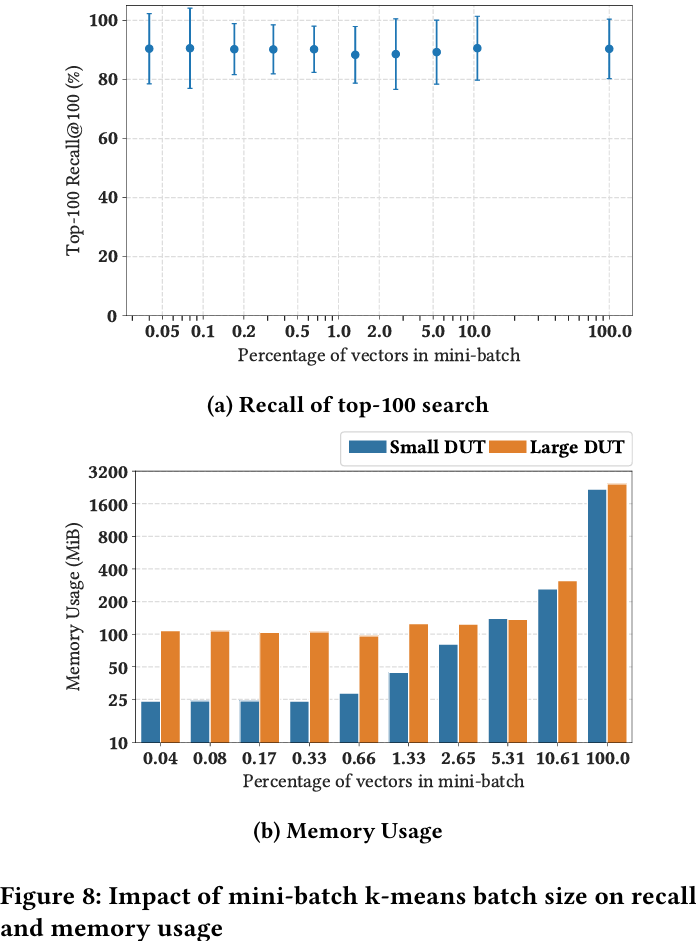

• Efficient index construction using mini-batch k-means, consuming 4–60x less memory than standard methods.
• Maintains high recall even when using <1% of the data during clustering.

---

2. Key Experimental Results

✅ Query Latency & Memory Usage

• Warm-cache latency: ~6–7ms for top‑100 ANN with 90% recall

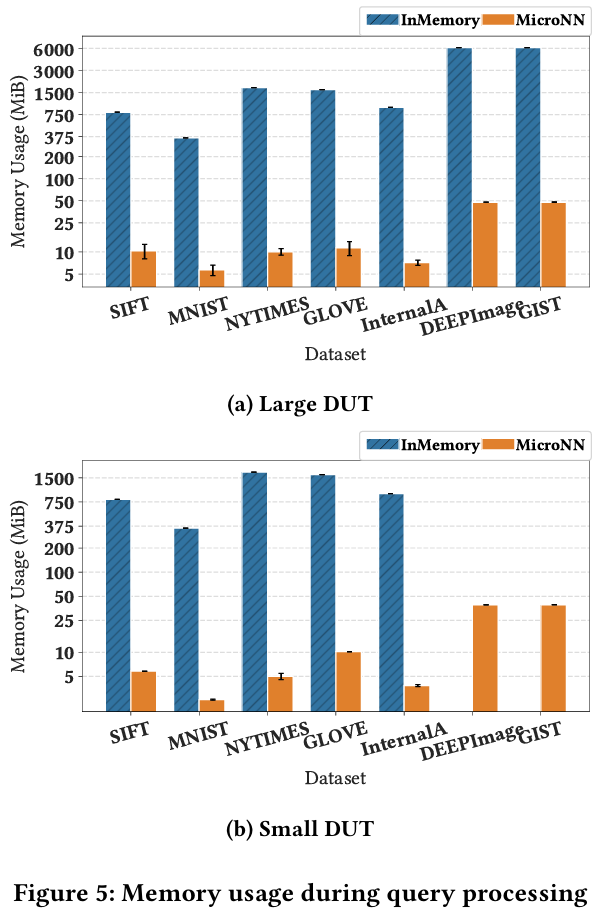

• Memory usage: <10MB for million-scale vectors
• Comparable to in-memory systems like FAISS but with a fraction of the resource cost

✅ Index Construction

• Supports index building on devices with just a few GB of RAM
• Mini-batch clustering enables scalable processing without loading all vectors into memory

✅ Incremental Updates vs Full Rebuild

• Figure 10 in the paper shows:
  • 90–93% recall even as delta-store grows
  • >98% I/O reduction compared to full rebuild
  • Low latency maintained via periodic incremental index merges



---

3. Applications & Implications

📱 On-device RAG

• MicroNN is well-suited as a vector retriever for local RAG pipelines (e.g., CLIP embeddings + GPT-based summarization).
• Enables private, offline, and fast semantic search on user devices.

🧠 LLM Context Cache

• Acts as a lightweight memory system for LLMs:
  • Stores prior prompts, embeddings, few-shot examples
  • Retrieves relevant context quickly via ANN + metadata filtering

📁 Content Organization

• Enables semantic auto-grouping of images, notes, or documents using both vector similarity and filters (e.g., by date, tags)

🚗 Edge AI / IoT

• Integrates well into edge workloads (drones, cars, smart sensors) where storage is available but RAM is limited
• Useful for low-latency, large-scale local analytics

---

4. Lessons Learned

Topic	Takeaway
Memory efficiency	High-recall ANN is possible with <10MB of RAM
Update support	Delta-store + incremental IVF enables real-time insert/delete
Hybrid query logic	Attribute filtering improves relevance; optimizer maintains performance
Storage-first design	Well-suited for SSD/NAND-rich, memory-constrained environments
On-device AI	Paves the way for true “local RAG” and AI agents without the cloud





---

5. Final Thoughts

Apple’s MicroNN demonstrates that fast and accurate ANN search is not just a cloud-scale feature. It can be done efficiently at the edge, with storage as the foundation.



As on-device AI accelerates, tools like MicroNN will become critical components of embedded AI assistants, personalized LLMs, and private RAG systems.



Stay tuned for future experiments integrating MicroNN with LLM backends on local devices.

---

Link : https://arxiv.org/abs/2504.05573

MicroNN: An On-device Disk-resident Updatable Vector Database
